Tipo SMD polimeri
| Misure : | 5φ×5.7mm~10φ×12.4mm |
|---|---|
| Voltaggio di funzionamento : | 2.5~63V |
| Temperatura massima : | -55~+105℃ |
| Durata : | 2,000~5,000 ore |
| Polarità : | uni-polare |
| Caratteristiche : | spessore ridotto, montaggio in superficie, ESR bassissimo, sopporta alta corrente di ripple, migliore resistenza alle temperature e lunga durata. |

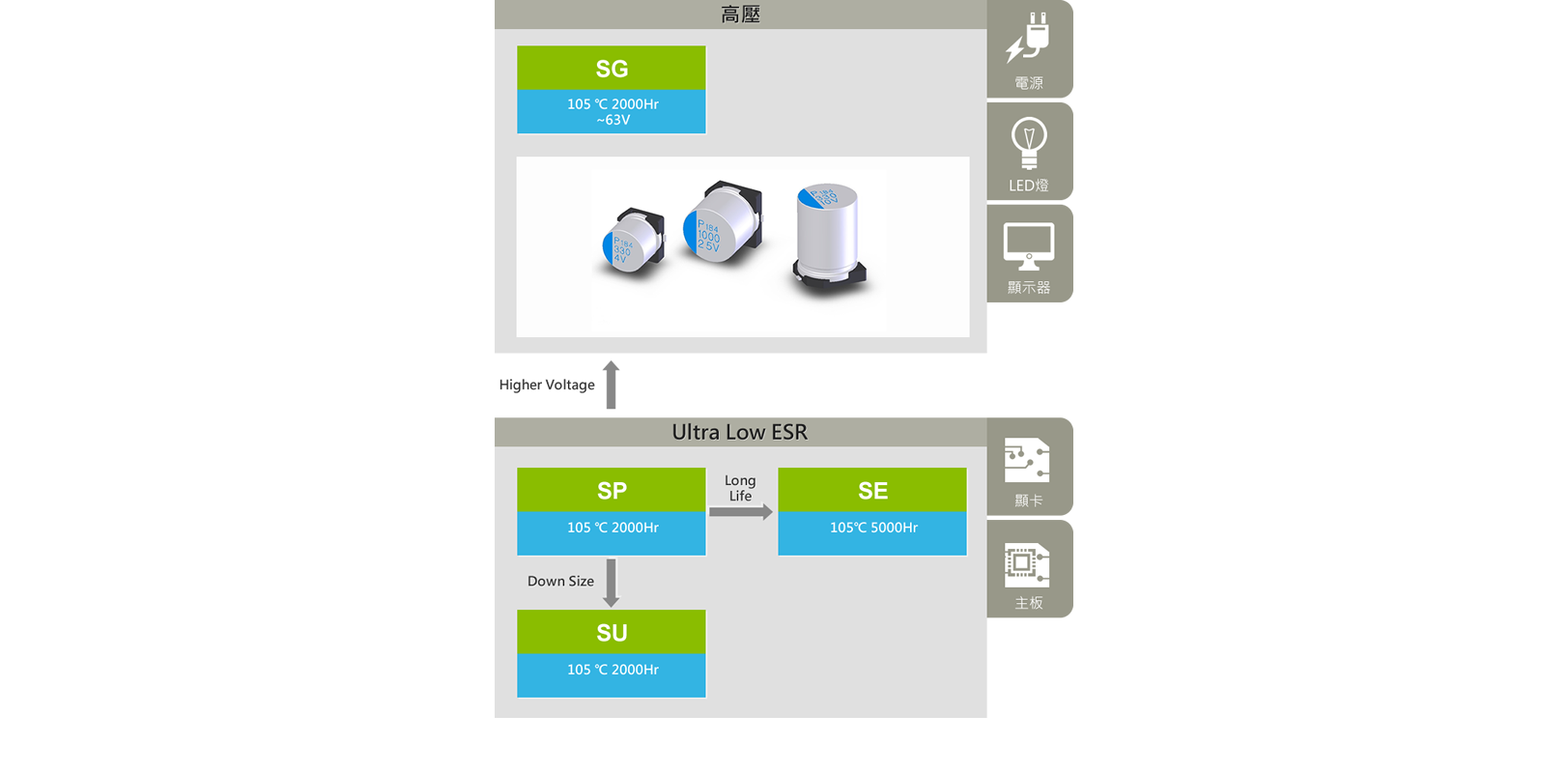

| Series | Caratteristiche | Rated Voltage Range (VDC) | Cap (μF) | Category Temperature (℃) | Endurance (hrs) |
|---|---|---|---|---|---|
| VSG | Low ESR, High voltage | 2.5 to 63 | 22 to 2,700 | -55 to 105℃ | 2,000 |
| VSP | Super Low ESR | 2.5 to 25 | 47 to 2,700 | -55 to 105℃ | 2,000 |
| VSU | Urtra Low ESR | 2.5 to 6.3 | 330 to 390 | -55 to 105℃ | 2,000 |
| VSD | Super low ESR and high voltage | 25 to 63 | 22 to 560 | -40 to 105℃ | 2,000 |
| VSE | Low ESR, Long Life 5,000hrs | 2.5 to 35 | 47 to 560 | -55 to 105℃ | 5,000 |
| VSH | Higher heat resistance 125℃ | 2.5 to 35 | 22 to 560 | -55 to 125℃ | 2,000 |
