ネジ端子タイプ
| サイズ : | 51φ×80mm~90φ×230mm |
|---|---|
| 使用電圧 : | 200~500V |
| 使用温度範囲 : | -40 ~ +105℃ |
| 保証寿命 : | 2,000~20,000時間 |
| 極性 : | 単極性 |
| 商品の特徴 : | 長寿命、耐高リプル電流。 Ripple Current |

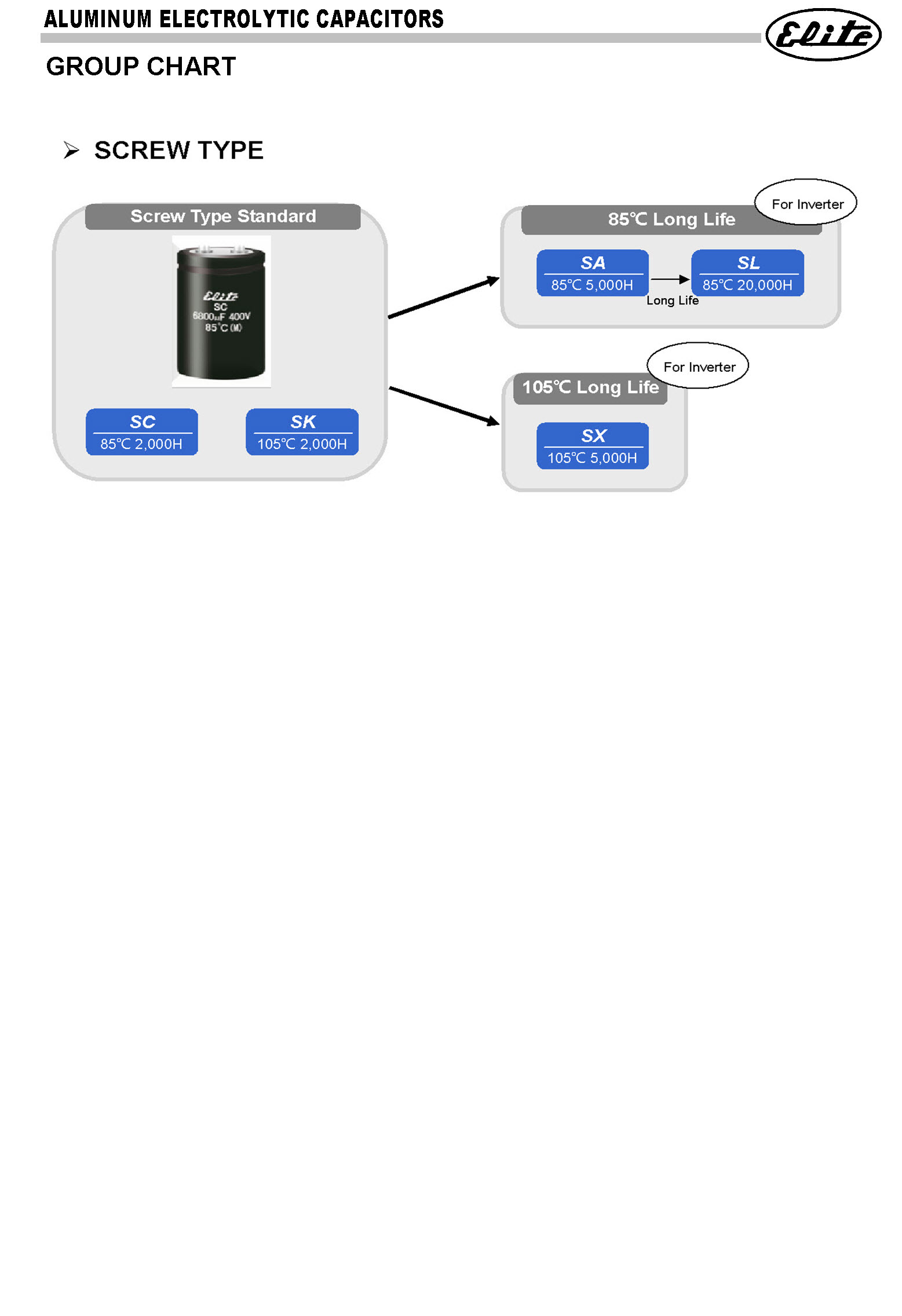

| Series | 商品の特徴 | Rated Voltage Range (VDC) | Cap (μF) | Category Temperature (℃) | Endurance (hrs) |
|---|---|---|---|---|---|
| SA | Long Life | 160 to 450 | 1,000 to 68,000 | -40℃~85℃ | 5,000 |
| SL | High Ripple Current , Long Life | 200 to 450 | 1,000 to 39,000 | -40℃~85℃ | 20,000 |
| SK | High temperature , Long Life | 200 to 400 | 1,000 to 39,000 | -40℃~105℃ | 2,000 |
| SC | Standard | 200 to 600 | 820 to 33,000 | -25℃~85℃ | 2,000 |
| SX | High temperature , Long Life | 200 to 450 | 1,000 to 39,000 | -40℃~105℃ | 5,000 |
