Radial Lead Type (Low ESR)

Radial Lead Type (Low ESR)
尺寸 : 8φ×7mm~18φ×40mm
工作電壓 : 6.3~63V
耐溫 : -55 ~ +105℃
保證壽命 : 1,000~10,000小時
極性 : 單極性
產品系列特點 : 小型化、細長型、低背型、長壽命、耐高紋波電流。

Series 產品系列特點 Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
ER Low Impedance, miniature size with 7 to 9 mm height 6.3 to 35 33 to 470 -40℃~105℃ 3,000
EH Low Impedance ,High Ripple Current, 9 mm height 10 to 35 150 to 820 -55℃~105℃ 3,000 to 4,000
EC Miniaturized, Low ESR and low impedance. 10 to 100 68 to 1,800 -40℃~105℃ 5,000
EL Extremely Low Impedance, Downsize 6.3 to 50 56 to 6,800 -40℃~105℃ 2,000
EB Extremely Low Impedance, High Ripple Current 6.3 to 16 82 to 3,300 -40℃~105℃ 1,000 to 2,000
EK Miniaturized, Low Impedance, High Ripple Current 6.3 to 50 0.1 to 6,800 -40℃~105℃ 2,000 to 5,000
EG Low Impedance, High Ripple Current, Long Life 6.3 to 63 10 to 10,000 -55℃~105℃ 3,000 to 6,000
EDJ Low impedance, high ripple current, long life 6.3 to 120 8.2 to 8,200 -55 to 105℃ 6,000 to 10.000
EY Miniaturized, Low impedance, High Ripple Current 6.3 to 100 6.8 to 18,000 -55℃~105℃ 4,000 to 10,000
RF Low impedance, Downsize,Long life 6.3 to 100 6.8 to 18,000 -55℃~105℃ 6,000 to 12,000

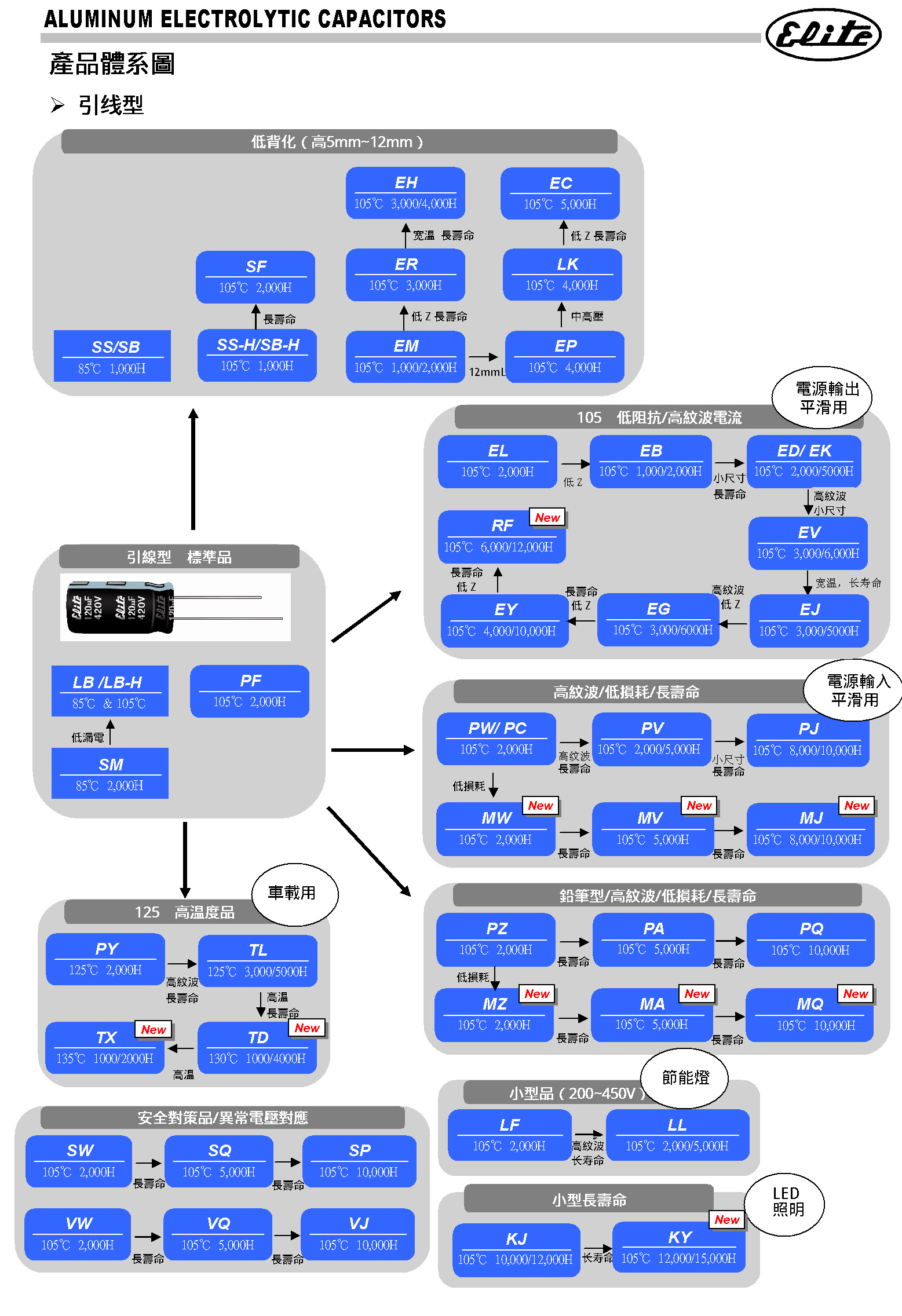

Radial Lead Type (Low ESR) Diagram

Radial Lead Type (Low ESR) Diagram
