Screw Terminal Type

Screw Terminal Type
尺寸 : 51φ×80mm~90φ×230mm
工作電壓 : 200~500V
耐溫 : -40 ~ +105℃
保證壽命 : 2,000~20,000小時
極性 : 單極性
產品系列特點 : 長壽命、耐高紋波電流。

Series 產品系列特點 Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
SC Standard 200 to 600 820 to 33,000 -25℃~85℃ 2,000
SA Long Life 160 to 450 1,000 to 68,000 -40℃~85℃ 5,000
SL High Ripple Current , Long Life 200 to 450 1,000 to 39,000 -40℃~85℃ 20,000
SK High temperature , Long Life 200 to 400 1,000 to 39,000 -40℃~105℃ 2,000
SX High temperature , Long Life 200 to 450 1,000 to 39,000 -40℃~105℃ 5,000

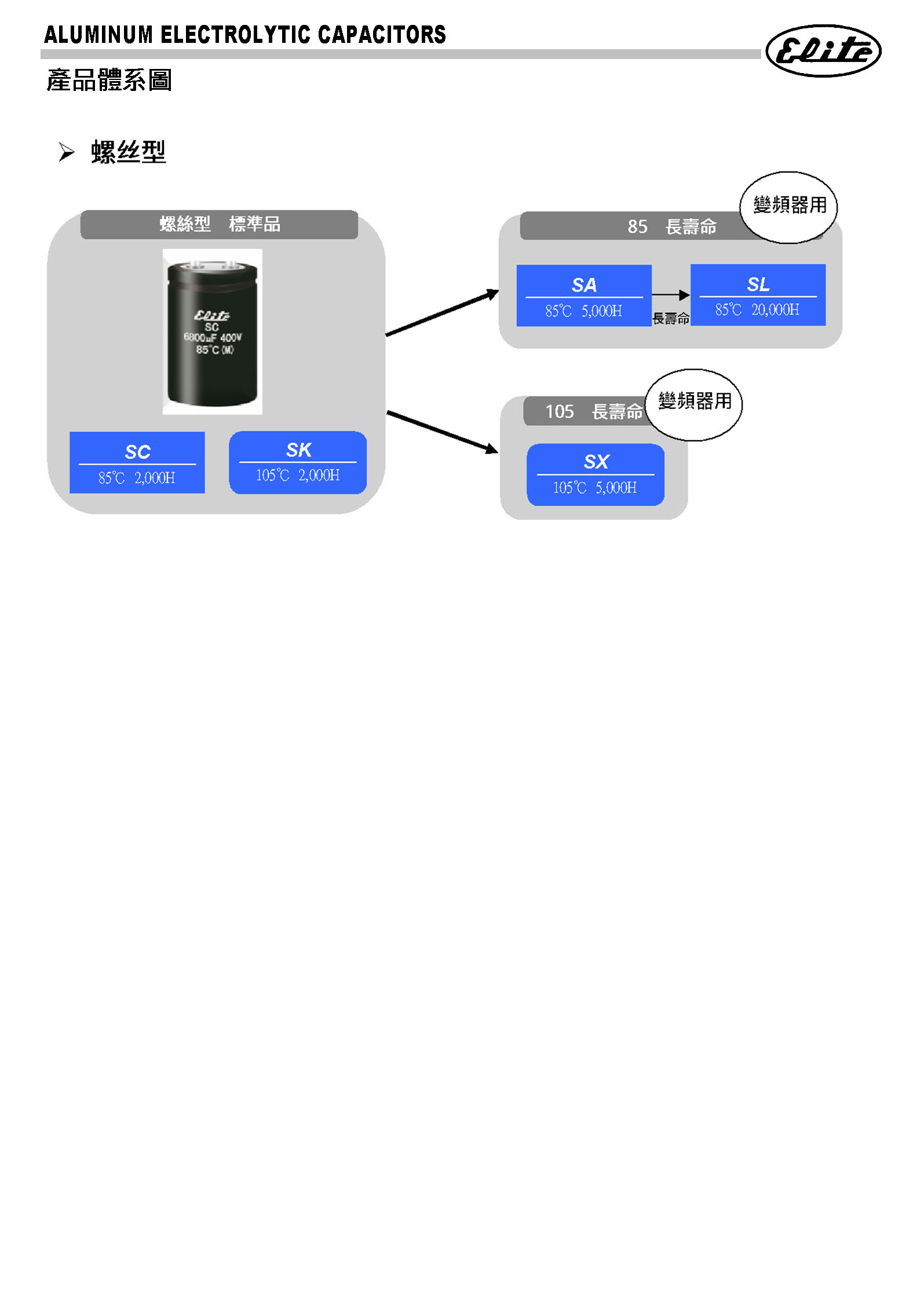

Screw Terminal Type Diagram

Screw Terminal Type Diagram
