Elektrolyt-Kondensatoren, Schraubanschluß-Typ

Elektrolyt-Kondensatoren, Schraubanschluß-Typ
Größe : 51φ×80mm~90φ×230mm
Betriebsspannung : 200~500V
Temperaturbeständigkeit : -40 ~ +105℃
Lebensdauer : 2,000~5,000 Stunden
Polarität : Unipolar
Eigenschaften : lange Lebensdauer, widersteht hoher Stromwelligkeit

Series Eigenschaften Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
SC Standard 200 to 600 820 to 33,000 -25℃~85℃ 2,000
SA Long Life 160 to 450 1,000 to 68,000 -40℃~85℃ 5,000
SL High Ripple Current , Long Life 200 to 400 1,000 to 39,000 -40℃~85℃ 20,000
SK High temperature , Long Life 200 to 400 1,000 to 39,000 -40℃~105℃ 2,000
SX High temperature , Long Life 200 to 400 1,000 to 39,000 -40℃~105℃ 5,000

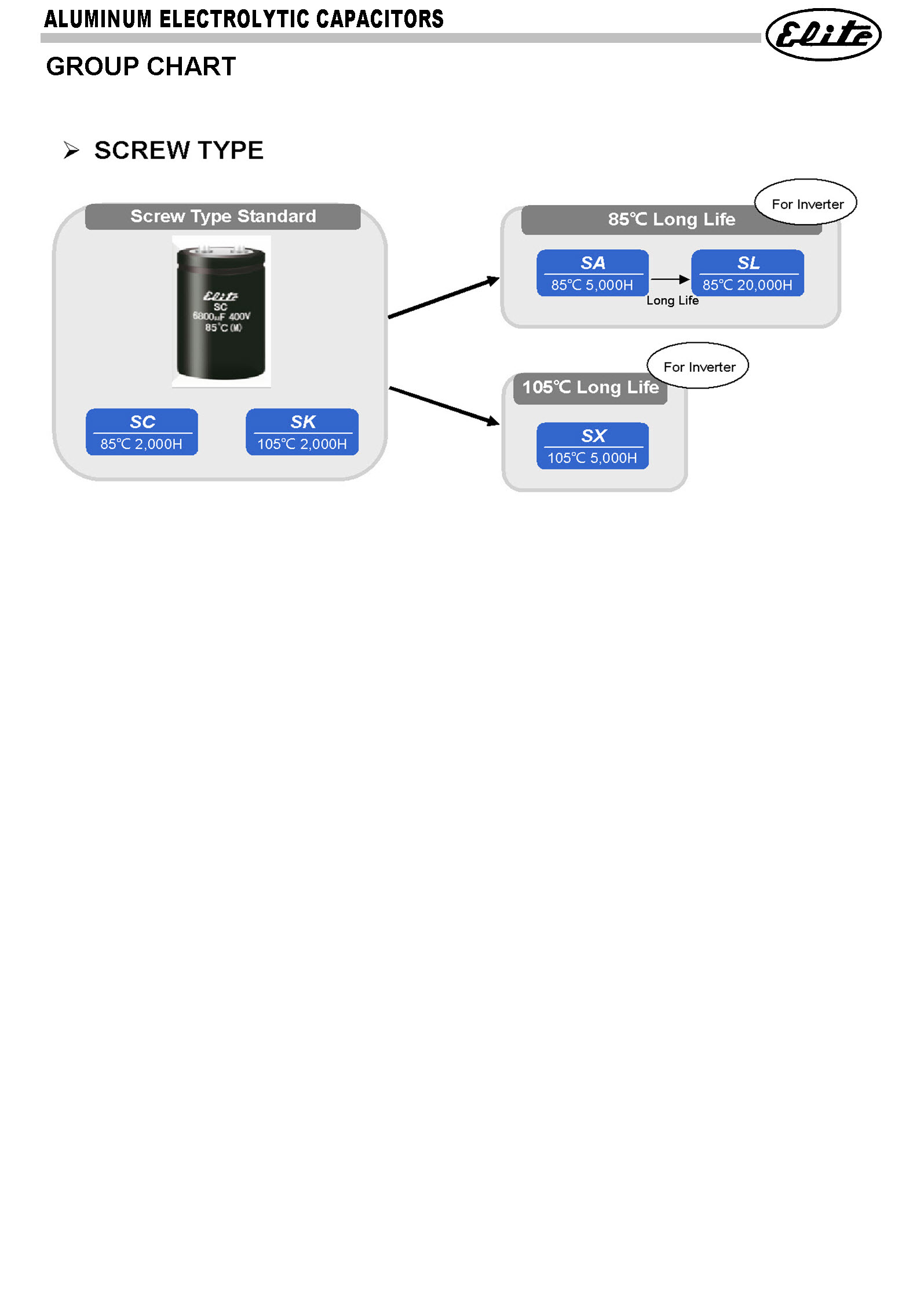

Screw Terminal Type Diagram

Screw Terminal Type Diagram
