레이디얼 리드 유형(저저항)

레이디얼 리드 유형(저저항)
사이즈 : 8φ×7mm~18φ×40mm
사용 전압 : 6.3~63V
내냉•내열 온도 : -55 ~ +105℃
보장 수명 : 1,000~10,000시간
극성 : 단극성
제품 시리즈 특징 : 제품 시리즈 특징 : 소형화, 슬림 타입, 쇼트 팻 타입, 긴 수명, 높은 리플 전류 저항

Series 제품 시리즈 특징 Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
ER Low Impedance, miniature size with 7 to 9 mm height 6.3 to 35 33 to 470 -40℃~105℃ 3,000
EH Low Impedance ,High Ripple Current, 9 mm height 10 to 35 150 to 820 -55℃~105℃ 3,000 to 4,000
EC Miniaturized, Low ESR and low impedance. 10 to 100 68 to 1,800 -40℃~105℃ 5,000
EL Extremely Low Impedance, Downsize 6.3 to 50 56 to 6,800 -40℃~105℃ 2,000
EB Extremely Low Impedance, High Ripple Current 6.3 to 16 82 to 3,300 -40℃~105℃ 1,000 to 2,000
EK Miniaturized, Low Impedance, High Ripple Current 6.3 to 50 0.1 to 6,800 -40℃~105℃ 2,000 to 5,000
EG Low Impedance, High Ripple Current, Long Life 6.3 to 63 10 to 10,000 -55℃~105℃ 3,000 to 6,000
EDJ Low impedance,high ripple current, long life 6.3 to 120 8.2 to 8,200 105℃ 6,000 to 10,000
EY Miniaturized, Low impedance, High Ripple Current 6.3 to 100 6.8 to 18,000 -55℃~105℃ 4,000 to 10,000
RF Low impedance, Downsize,Long life 6.3 to 100 6.8 to 18,000 -55℃~105℃ 6,000 to 12,000

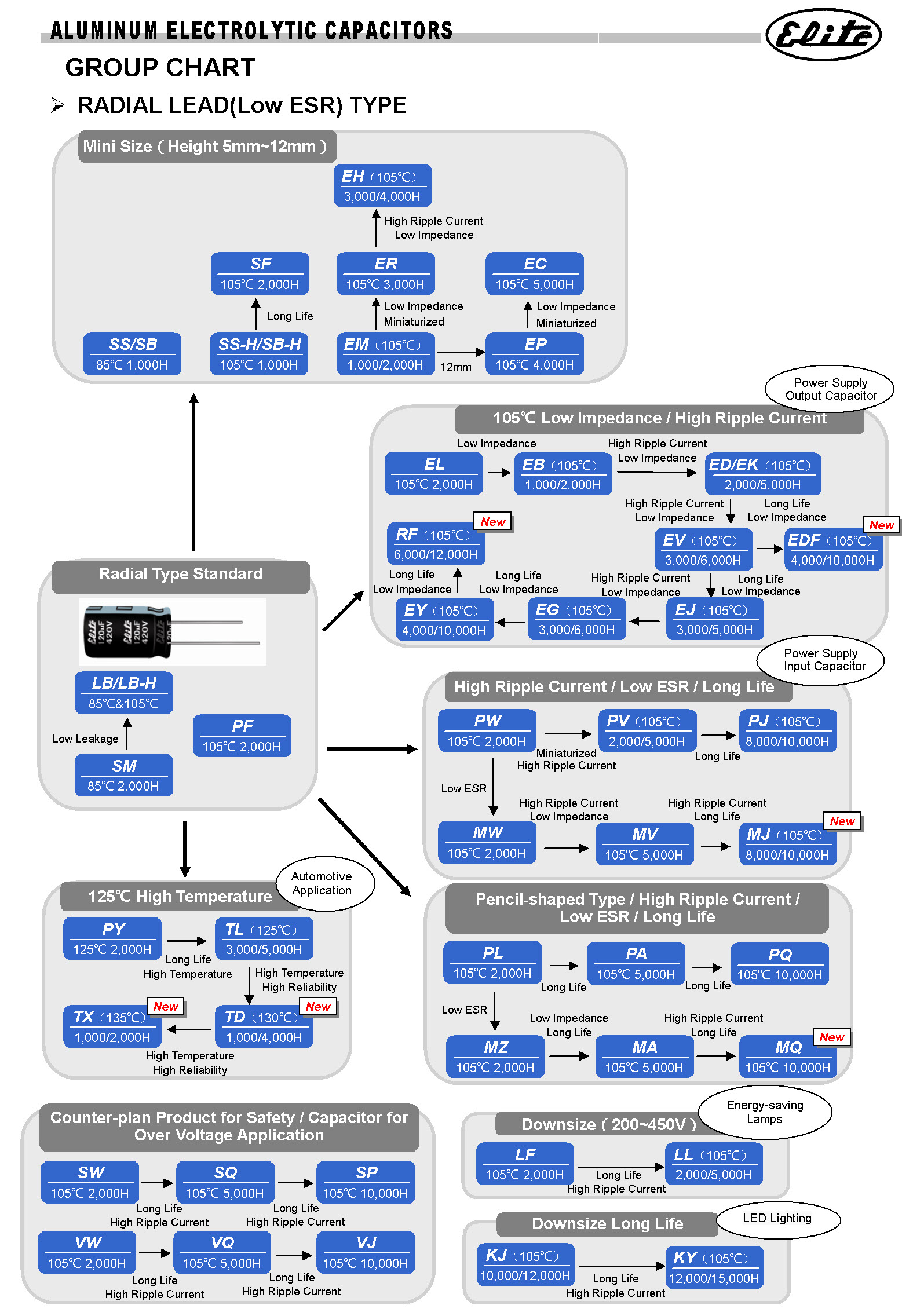

Radial Lead Type (Low ESR) Diagram

Radial Lead Type (Low ESR) Diagram
