스냅인, 러그 단자 유형

스냅인, 러그 단자 유형
사이즈 : 20φ×25mm~40φ×120mm
사용 전압 : 6.3~500V
내냉•내열 온도 : -40 ~ +105℃
보장 수명 : 1,000~5,000시간
극성 : 단극성
제품 시리즈 특징 : 소형화, 쇼트 팻 타입, 긴 수명, 높은 리플 전류 저항, 수평 마운팅식, 내염성

Series 제품 시리즈 특징 Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
GM General , Standard 16 to 550 47 to 68,000 85℃ 2,000
GV High ripple current, long life 200 to 500 56 to 2,200 85℃ 5,000
PL General, High Temperature, Long Life 16 to 500 39 to 47,000 -40℃~105℃ 2,000
PK High Temperature , Long Life 200 to 450 56 to 1,800 -25℃~105℃ 3,000
PG Smaller size with higher ripple current 200 to 500 47 to 1,800 -25℃~105℃ 5,000
PO Snap-in terminal, more downsized 400 to 450 68 to 680 -25℃~105℃ 2,000
PI Snap-in terminal, downsized 400 to 450 56 to 680 -25℃~105℃ 3,000
TWH Standard, high temperature 400 to 450 82 to 820 125℃ 2,000
TG The double waist products, Long life.. 10 to 100 680 to 47,000 -40℃~125℃ 5,000
GD General , Standard , Horizontal Mounting 160 to 450 82 to 1,200 -25℃~85℃ 2,000
PX High Temperature, Horizontal Mounting 160 to 450 68 to 1,500 -25℃~105℃ 2,000
AQ For Power Supply and Air-Conditioner 400 to 450 330 to 820 -25℃~85℃ 3,000
AN For Power Supply and Air-Conditioner 400 to 450 800 to 3,300 -25℃~85℃ 3,000

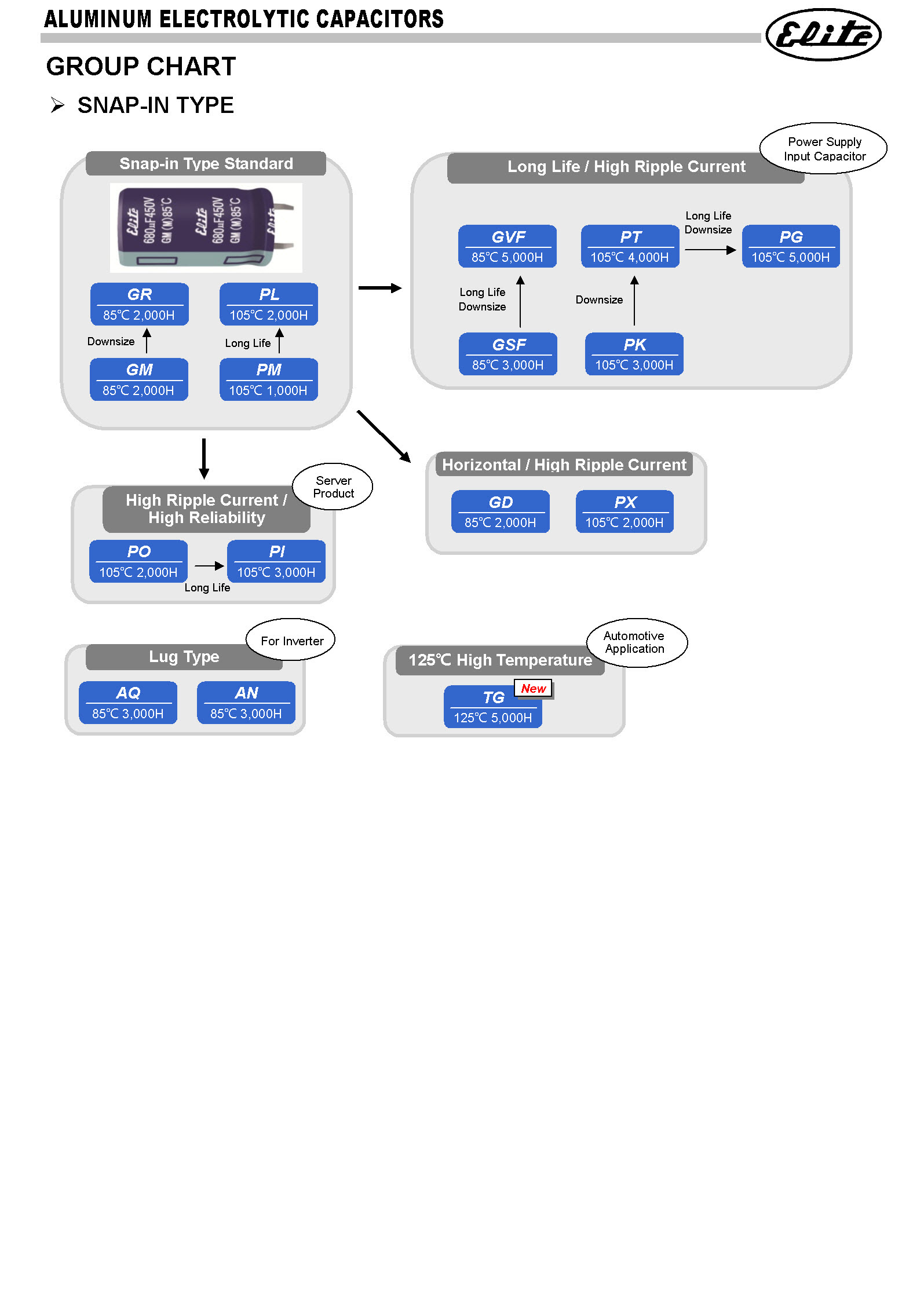

Snap-In, Lug Terminal Type Diagram

Snap-In, Lug Terminal Type Diagram
