Radial Lead Type (General)

Radial Lead Type (General)
Size : 4φ×7mm~22φ×51mm
Working Voltage : 6.3~500V
Category Temperature : -40 ~ +125℃
Load Life : 1,000~10,000 Hours
Polarity : Uni-Polar and Bi-Polar(Non-polarized)
Features : Miniature, Tall & Slim Type, Short & Fat Type, Long Service Life, High Temperature (125℃).

Series Features Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
KY Downsize, High ripple current, Long life 160 to 450 6.8 to 470 -25~105℃ 12,000 to 15,000
TX High-temperature 135℃, High reliability. 10 to 50 22 to 1,000 -55~135°C 1,000 to 2,000
TD High-temperature 130℃ , High reliability. 10 to 450 4.7 to 4,700 -40~130°C 1,000 to 4,000
SS 7mm height 6.3 to 63 0.1 to 330 -40℃~85℃ 1,000
SF 7mm height 6.3 to 63 0.1 to 220 -40℃~105℃ 2,000
ND-H Non-Polar High Temperature 6.3 to 250 0.47 to 2,200 -40℃~105℃ 1,000
MJ Low ESR, Downsize , High ripple current, long life 200 to 450 6.8 to 330 -25℃~105℃ 8,000 to 10,000
SB-H 5mm height, High Temperature 4 to 50 0.1 to 470 -40℃~105℃ 1,000
MW Low ESR, High ripple current 200 to 450 68 to 470 -25℃~105℃ 2,000
PZ Ideal for low profile power supply applications 200 to 450 18 to 270 -40℃~105℃ 2,000
SB 5mm height 4 to 50 0.1 to 470 -40℃~85℃ 1,000
KJ Downsize, High ripple current, Long life 160 to 450 6.8 to 560 -25℃~105℃ 10,000 to 12,000
PA 105℃ Long Life 5,000 hours, Ultra miniature size 400 to 450 33 to 120 -25℃~105℃ 5,000
LB Low Leakage Current 6.3 to 100 0.47 to 4,700 -40℃~85℃ 2,000
VW High ripple current, Miniaturized 160 to 450 22 to 680 -25℃~105℃ 2,000
PQ 105℃ Long Life 10,000 hours, miniature size 200 to 450 33 to 220 -25℃~105℃ 10,000
LB-H Low Leakage Current, High Temperature 6.3 to 100 0.47 to 4,700 -40℃~105℃ 1,000
VQ High ripple current, Long life 5,000 hours 160 to 450 22 to 680 -25℃~105℃ 5,000
PY High-temperature 125℃, high reliability 10 to 450 4.7 to 1,000 -40℃~125℃ 2,000
MZ Low ESR, High ripple current, Ultra miniature size 200 to 450 18 to 270 -40℃~105℃ 2,000
PC Downsize, Ideal for low profile power supply applications 200 to 450 56 to 560 -25℃~105℃ 2,000
VJ High ripple current, Long life 10,000 hours 160 to 450 22 to 680 -25℃~105℃ 10,000
SP High ripple current, Long life 5,000 hours 160 to 450 22 to 680 -25℃~105℃ 10,000
MA Low ESR , long life, Ultra miniature size 400 to 450 33 to 120 -25℃~105℃ 5,000
TL High-temperature 125℃, long life 10 to 50 22 to 1,000 -55℃~125℃ 3,000 to 5,000
LF Energy-saving lamps, Standard Downsize 200 to 450 1 to 68 -25℃~105℃ 2,000
PJ long life 8,000 to 10,000 hours 160 to 500 6.8 to 330 -25℃~105℃ 8,000 to 10,000
MQ Low ESR, High ripple current, long life, Ultra miniature size 200 to 450 33 to 220 -25℃~105℃ 10,000
PW High Ripple Current, Downsize 200 to 500 10 to 470 -25℃~105℃ 2,000
LL Energy-saving lamps, High ripple current , Long life 200 to 450 1 to 68 -25℃~105℃ 2,000 to 5,000
ND Non-Polar Standard 6.3 to 250 0.47 to 2,200 -40℃~85℃ 2,000
PF Standard 6.3 to 450 0.47 to 22,000 -40℃~105℃ 2,000
SQ High ripple current, Long life 5,000 hours 160 to 450 22 to 680 -25℃~105℃ 5,000
LK Downsize, High ripple current ,12 mm height 160 to 200 22 to 39 -25℃~105℃ 4,000
SM General, Downsize 6.3 to 450 0.1 to 22,000 -40℃~85℃ 2,000
MV Low ESR, High ripple current , long life 200 to 450 6.8 to 470 -25℃~105℃ 5,000
PV Downsize with high ripple current 200 to 450 6.8 to 470 -25℃~105℃ 2,000 to 5,000
SS-H 7mm height, High Temperature 6.3 to 63 0.1 to 330 -40℃~105℃ 1,000
SW High ripple current, Miniaturized 160 to 450 22 to 680 -25℃~105℃ 2,000

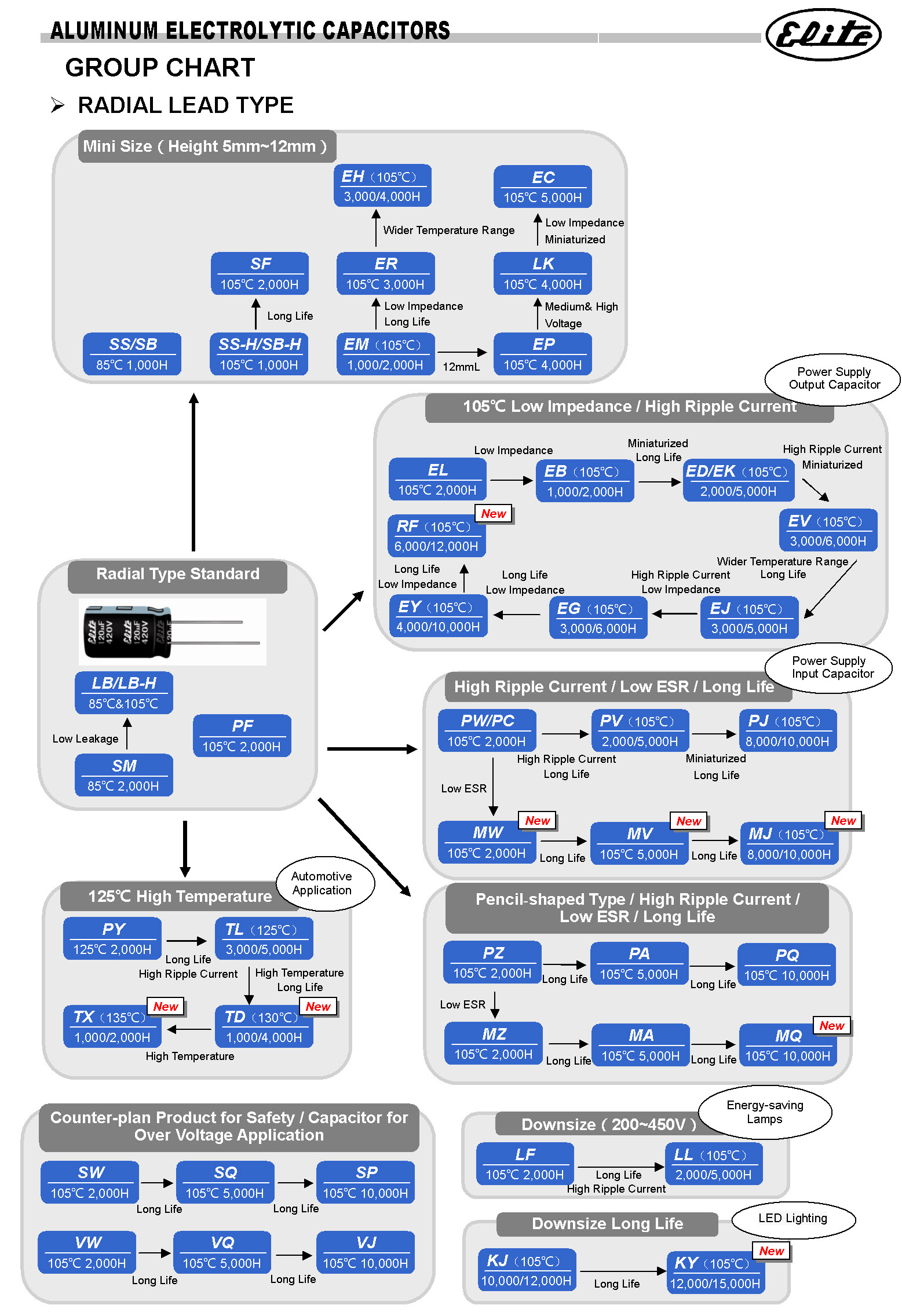

Radial Lead Type (General) Diagram

Radial Lead Type (General) Diagram
