Radial Lead Type (Low ESR)

Radial Lead Type (Low ESR)
Size : 8φ×7mm~18φ×40mm
Working Voltage : 6.3~63V
Category Temperature : -55 ~ +105℃
Load Life : 1,000~10,000 Hours
Polarity : Uni-Polar
Features : Miniature, Tall & Slim Type, Short & Fat Type, Long Service Life, Withstand High Ripple Current.

Series Features Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
RF Low impedance, Downsize,Long life 6.3 to 100 6.8 to 18,000 -55℃~105℃ 6,000 to 12,000
EV Low Impedance, High Ripple Current 6.3 to 35 10 to 8,200 -55℃~105℃ 3,000 to 6,000
EK Miniaturized, Low Impedance, High Ripple Current 6.3 to 50 0.1 to 6,800 -40℃~105℃ 2,000 to 5,000
ED Low Impedance, High Ripple Current 6.3 to 100 10 to 10,000 -40℃~105℃ 2,000 to 5,000
EB Extremely Low Impedance, High Ripple Current 6.3 to 16 82 to 3,300 -40℃~105℃ 1,000 to 2,000
EP Miniaturized, Low Impedance, 12 mm height 10 to 100 68 to 1,800 -40℃~105℃ 4,000
EY Miniaturized, Low impedance, High Ripple Current 6.3 to 100 6.8 to 18,000 -55℃~105℃ 4,000 to 10,000
EL Extremely Low Impedance, Downsize 6.3 to 50 56 to 6,800 -40℃~105℃ 2,000
EC Miniaturized, Low ESR and low impedance. 10 to 100 68 to 1,800 -40℃~105℃ 5,000
EG Low Impedance, High Ripple Current, Long Life 6.3 to 63 10 to 10,000 -55℃~105℃ 3,000 to 6,000
EJ Low Impedance, Long Life 6.3 to 63 10 to 10,000 -55℃~105℃ 3,000 to 5,000
EH Low Impedance ,High Ripple Current, 9 mm height 10 to 35 150 to 820 -55℃~105℃ 3,000 to 4,000
ER Low Impedance, miniature size with 7 to 9 mm height 6.3 to 35 33 to 470 -40℃~105℃ 3,000
EM Low Impedance, Height Ripple Current, Miniature Size 6.3 to 35 33 to 470 -40℃~105℃ 1,000 to 2,000

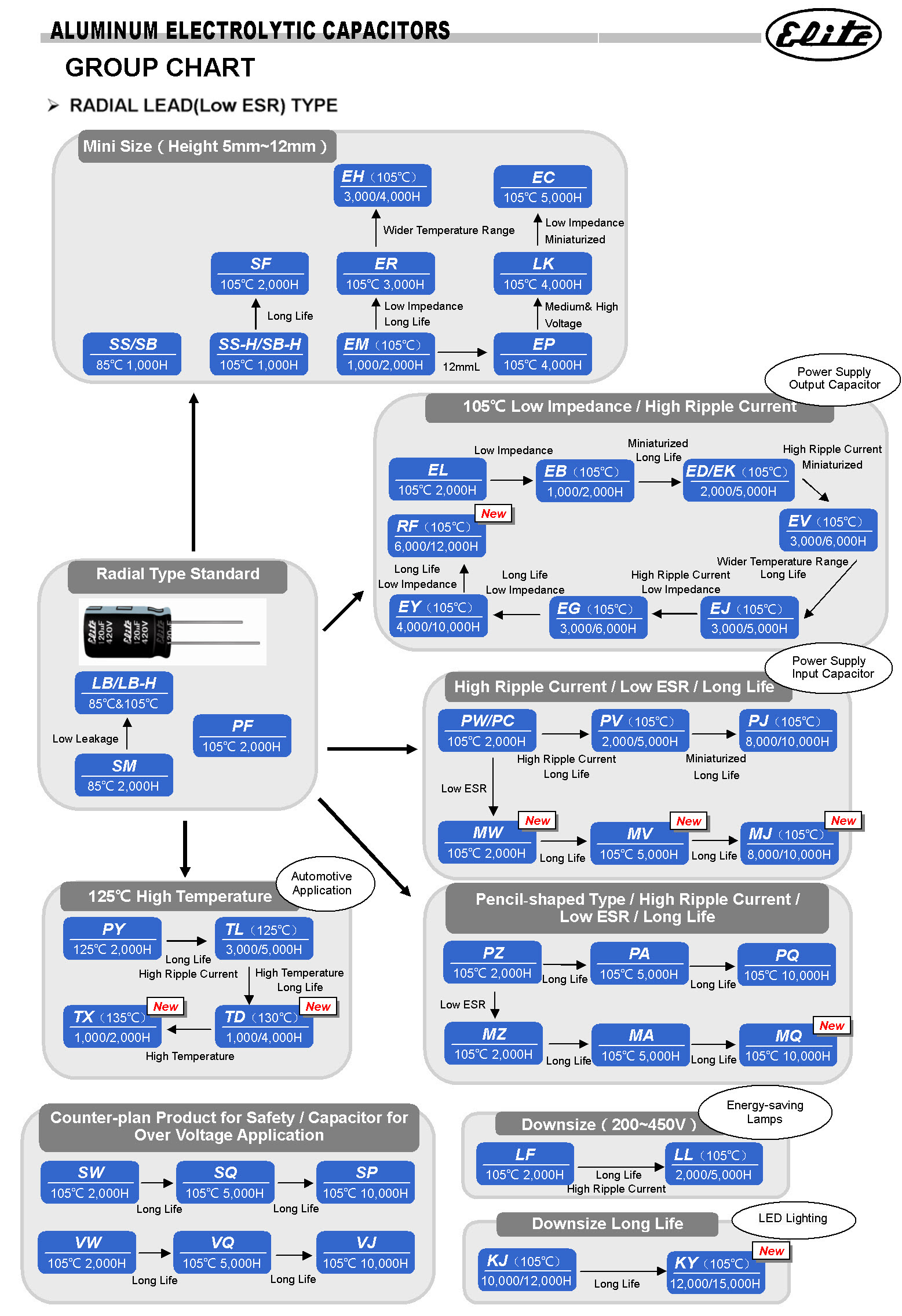

Radial Lead Type (Low ESR) Diagram

Radial Lead Type (Low ESR) Diagram
