Polymer Radial Lead Type

Polymer Radial Lead Type
Size : 5φ×8mm~10φ×20mm
Working Voltage : 2.5~100V
Category Temperature : -55~+125℃
Load Life : 2,000~5,000 Hours
Polarity : Uni-Polar
Features : Super Low ESR, Withstand Higher Ripple Current, Better Temperature Capability and Long Service Life

Series Features Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
UGP Low ESR, High voltage 10 to 25 47 to 1,000 -55 to 105℃ 2,000
UGV High reliability and High voltage 25 to 100 18 to 470 -55 to 105℃ 2,000
UGS Low ESR and Large Capacitance 16 to 25 470 to 2,700 -55 to 105℃ 2,000
UGT Low ESR, endurance 105℃ 3,000hours 6.3 to 63 22 to 1,500 -55 to 105℃ 3,000
URP ESR 12 mΩ 2.5 to 16 100 to 2,700 -55 to 105℃ 2,000
URH Higher heat resistance 125℃ & High reliability 2.5 to 25 82 to 1,200 -55 to 125℃ 2,000
UPS Super Low ESR 7 mΩ and Large Capacitance 2.5 to 16 150 to 2,000 -55 to 105℃ 2,000
UPR Super Low ESR 8 mΩ and Small size 2.5 to 16 100 to 820 -55 to 105℃ 2,000
UUL Small size, Low profile and Low ESR 2.5 to 16 100 to 680 -55 to 105℃ 2,000
UPC Super low ESR and high ripple current 6.3 to 22 150 to 1,200 -55 to 105℃ 2,000
UPD Uper low ESR and large capacitance in high voltage 25 to 63 82 to 820 -40 to 105℃ 2,000
UPE Super Low ESR, Endurance 105℃ 5,000hrs 2.5 to 35 22 to 1,000 -55 to 105℃ 5,000

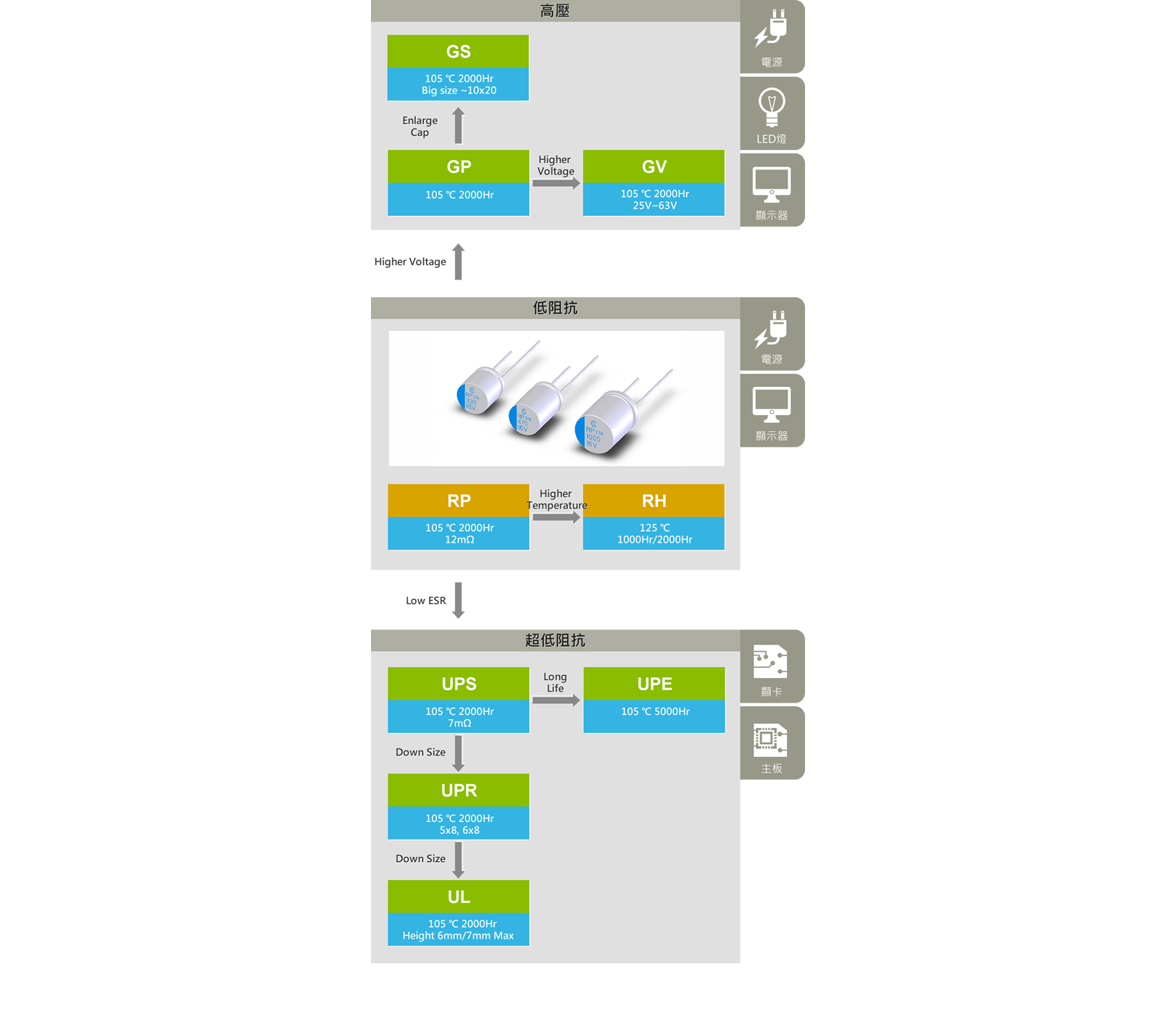

Polymer Radial Lead Type Diagram

Polymer Radial Lead Type Diagram
