Snap-In, Lug Terminal Type

Snap-In, Lug Terminal Type
Size : 20φ×25mm~40φ×120mm
Working Voltage : 6.3~500V
Category Temperature : -40 ~ +105℃
Load Life : 1,000~5,000 Hours
Polarity : Uni-Polar
Features : Miniature, Short & Fat Type, Long Service Life, Withstand High Ripple Current、Horizontal mounting type、Flame Retardant.

Series Features Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
PL General, High Temperature, Long Life 16 to 500 39 to 47,000 -40℃~105℃ 2,000
PK High Temperature , Long Life 200 to 450 56 to 1,800 -25℃~105℃ 3,000
PO Snap-in terminal, more downsized 400 to 450 68 to 680 -25℃~105℃ 2,000
PI Snap-in terminal, downsized 400 to 450 56 to 680 -25℃~105℃ 3,000
TG The double waist products, Long life. 10 to 100 680 to 47,000 -40℃~125℃ 5,000
PG Smaller size with higher ripple current 200 to 500 47 to 1,800 -25℃~105℃ 5,000
GD General , Standard , Horizontal Mounting 160 to 450 82 to 1,200 -25℃~85℃ 2,000
PX High Temperature, Horizontal Mounting 160 to 450 68 to 1,500 -25℃~105℃ 2,000
GR General , Downsize 350 to 450 82 to 680 -40℃~85℃ 2,000
AQ For Power Supply and Air-Conditioner 400 to 450 330 to 820 -25℃~85℃ 3,000
GSF Standard, Long life down size and high ripple current 200 to 450 68 to 2,200 -25℃~85℃ 3,000
AN For Power Supply and Air-Conditioner 400 to 450 800 to 3,300 -25℃~85℃ 3,000
GVF High ripple current , Load life 5,000 hours at 85℃ 200 to 500 56 to 2,200 -25℃~85℃ 5,000
PT General, High Temperature , Long Life 200 to 400 68 to 1,000 -25℃~105℃ 4,000
PM General , High Temperature 16 to 450 56 to 68,000 -40℃~105℃ 1,000
GM High ripple current, 85℃ 2,000 16 to 500 56 to 68,000 -40℃~85℃ 2,000

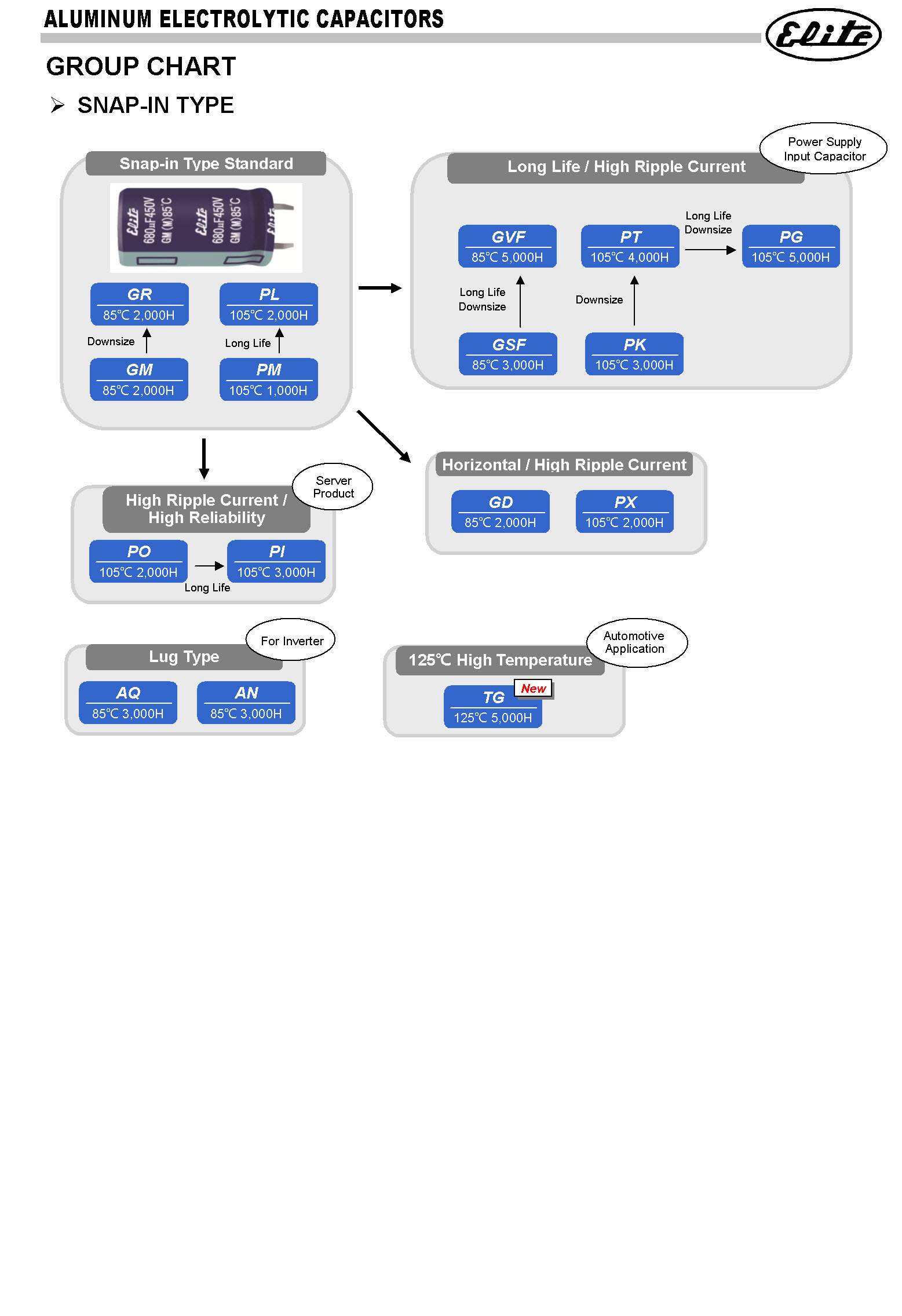

Snap-In, Lug Terminal Type Diagram
