Polymer SMD Type

Polymer SMD Type
Size : 5φ×5.7mm~10φ×12.4mm
Working Voltage : 2.5~63V
Category Temperature : -55~+105℃
Load Life : 2,000~5,000 Hours
Polarity : Uni-Polar
Features : Low Profile Surface Mount type, Super Low ESR, Withstand Higher Ripple Current, Better Temperature Capability and Long Service Life

Series Features Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
SU Urtra Low ESR 2.5 to 6.3 330 to 390 -55 to 105℃ 2,000
SP Low ESR ,High Ripple Current 2.5 to 25 47 to 2,700 -55 to 105℃ 2,000
SG Low ESR, High voltage 2.5 to 63 22 to 2,700 -55 to 105℃ 2,000
SE Low ESR, Long Life 5,000hrs 2.5 to 35 47 to 560 -55 to 105℃ 5,000

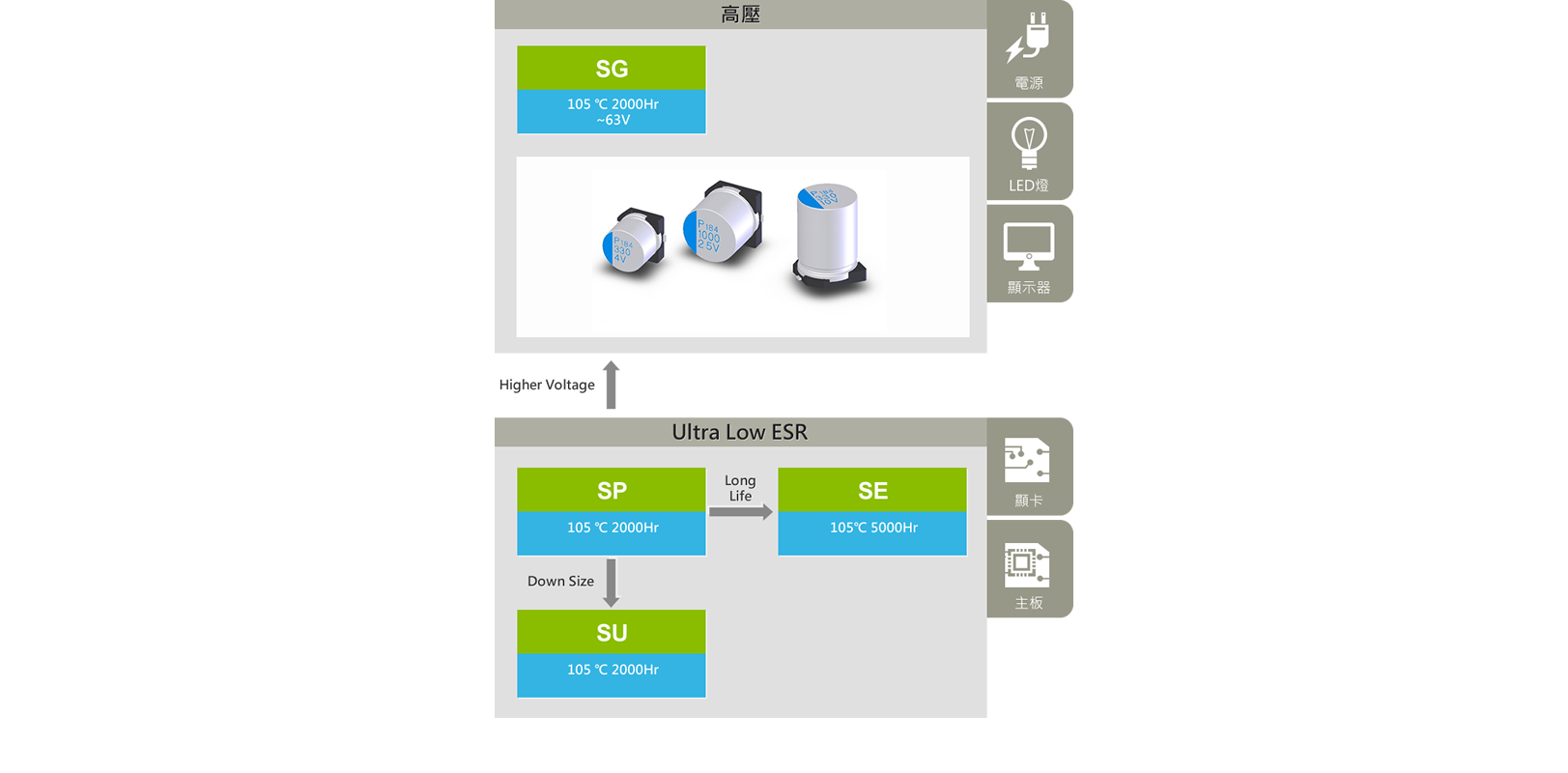

Polymer SMD Type Diagram

Polymer SMD Type Diagram
