Screw Terminal Type

Screw Terminal Type
Size : 51φ×80mm~90φ×230mm
Working Voltage : 200~500V
Category Temperature : -40 ~ +105℃
Load Life : 2,000~20,000 Hours
Polarity : Uni-Polar
Features : Long Service Life, Withstand High Ripple Current

Series Features Rated Voltage Range (VDC) Cap (μF) Category Temperature (℃) Endurance (hrs)
SX High temperature , Long Life 200 to 400 1,000 to 39,000 -40℃~105℃ 5,000
SK High temperature , Long Life 200 to 400 1,000 to 39,000 -40℃~105℃ 2,000
SL High Ripple Current , Long Life 200 to 400 1,000 to 39,000 -40℃~85℃ 20,000
SA Long Life 160 to 450 1,000 to 68,000 -40℃~85℃ 5,000
SC Standard 200 to 600 820 to 33,000 -25℃~85℃ 2,000

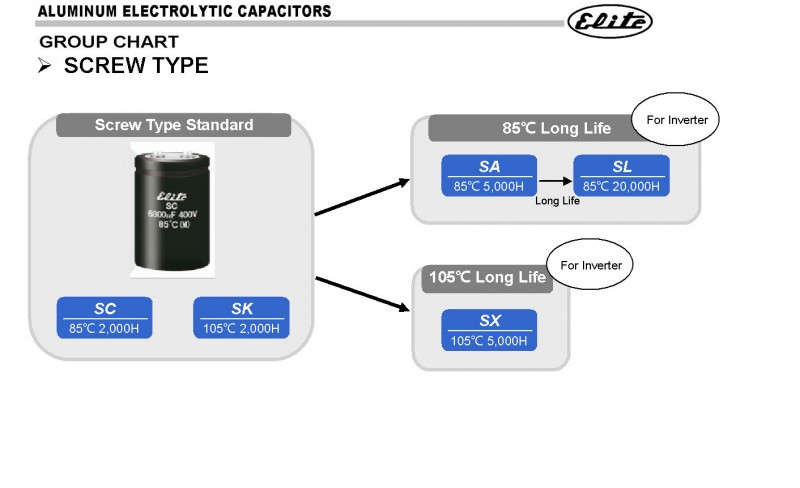

Screw Terminal Type Diagram

Screw Terminal Type Diagram
